Check Piping Systems

This tool examines the piping systems that you create in a project to verify that each system is assigned to a user-defined system, and properly connected.

To verify the connections for pipe systems in the model, click Analyze tabCheck Systems panel Check Pipe Systems.

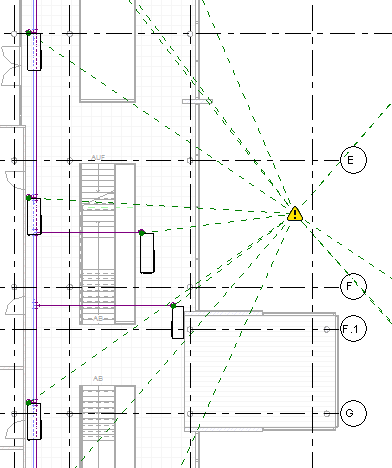

Revit displays graphical warning markers and web lines for invalid pipe systems in the current view. Warnings display when the following conditions are found:

• The system is not well connected.
  A system is considered not well connected when elements in the system are not connected into a single physical network. For example, a system with one or more fixtures not connected in a single network of pipe is not well connected.
• There is a flow/demand configuration mismatch.
• There is a flow direction mismatch.

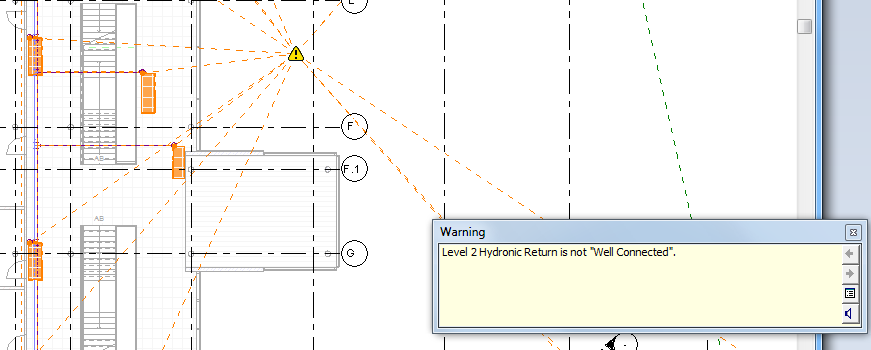

Click a warning marker to display a related warning message. In the related warning message, click the arrow buttons as needed to scroll the list of warning messages. Click Expand Warning Dialog to view the details of the warning message.
