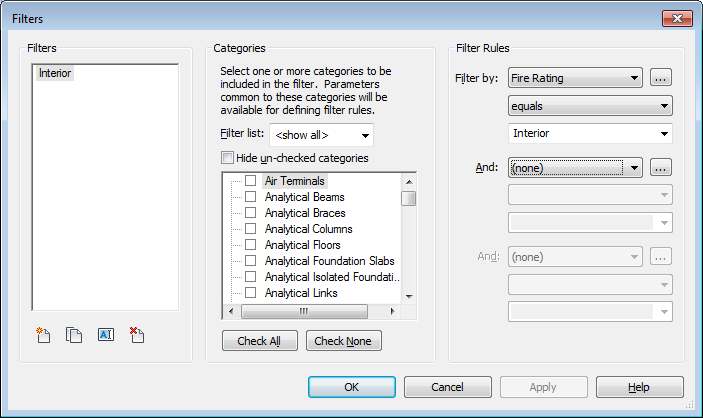

In the Filters dialog, click (New), and enter a name for the filter.
To create a filter based on an existing one, select the existing filter and create Edit. In the Filters dialog, click (Duplicate). The new default filter name displays in the Filters list; select it and click (Rename) to rename it.
Under Categories, select one or more categories to include in the filter.
The selected categories determine the parameters that are available in the Filter By lists. The displayed parameters are common to all selected categories.
TipUse the Filter list to display categories that apply to selected disciplines. If you are editing or duplicating a filter, you can select Hide un-checked categories.
Examples: To create a filter to show only 2-hour fire-rated doors, select the Doors category. To create a filter to show 2-hour fire-rated doors and walls, select the Doors and Walls categories.
From the Filter By list, select the parameter to filter by (for example, fire rating).
If the desired filter parameter is not in the list, click to view additional parameters or to create a custom parameter (for example, NIC [not in contract]).
