Copying an Array

    Table of contents
    No headers
    • Revit Structure iconRevit Structure
    1. Select all members of the array.
    2. While pressing Ctrl, click and drag an array member to a new location.

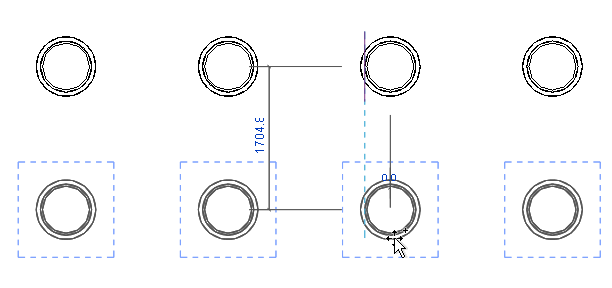

    Example

    Revit Structure

    Example

    Comments

    Comments2

    • akrWed Apr 11, 2012 2:01 pmCan an array be itself 'arrayed'? I have tried but do not get the expected results and wonder if there are some guidelines in order to achieve this or perhaps it is not possible?
    • loboarchThu Apr 12, 2012 5:07 amYes, an array can be arrayed. in fact the tool clip video for the array tool shows this action by arraying a row of seating to fill an auditorium. If you are having trouble with this perhaps you could post the question along with some sample images or a sample Revit file to the Autodesk discussion forums where members of the community can see the problem and help with troubleshooting it.

      Jeff Hanson
      Sr. Subject Matter Expert
      Autodesk, Revit UX
