Making the Work Plane Visible

On the ribbon, click (Show).

Where is it?

• Architecture tabWork Plane panel (Show)
• Structure tabWork Plane panel (Show)
• Systems tabWork Plane panel (Show)
• Family Editor: Create tabWork Plane panel (Show)

The work plane appears as a grid in the view.

Example

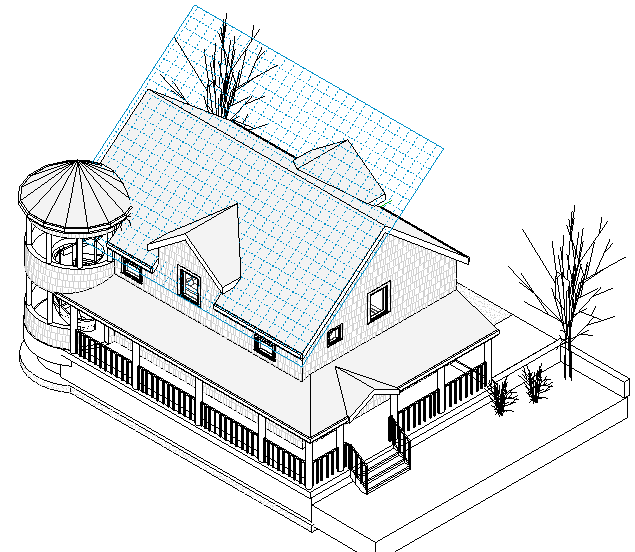

Part of a work plane grid

Example

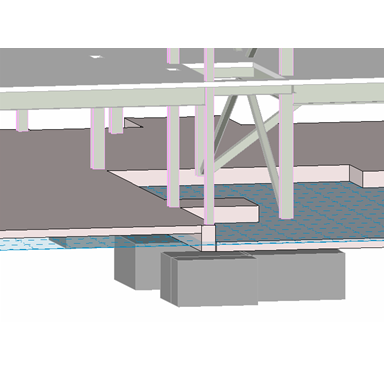

Work plane grid set at the level of a depression in a composite deck system
