Creating a Sloped Surface Using Parallel Sketch Lines

You can use this method to create a sloped surface on the following types of elements:

• soffits
• floors
• structural floors
• ceilings

To create a sloped roof, see Roof Slope.

To slope a building pad, use a slope arrow.

To create a sloped surface

1. If you are not already in sketch mode, select the element in a plan view, and click Modify | <Elements> tabMode panel(Edit Boundary/Footprint/Sketch).

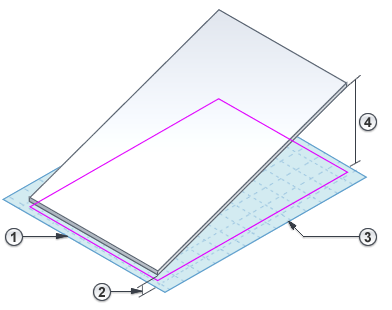

2. Select one boundary line, and, on the Properties palette:
   • Select Defines Constant Height.
   • Enter values for Level and Offset From Base .
3. Select a parallel boundary line, and, using the same method, specify the properties for Level and Offset From Base .

4. On the ribbon, click (Finish Edit Mode).
