Macro Manager is the user interface for:
- Selecting an option that launches the Revit Macro IDE, where you can add, edit, build and debug your macros.
- Running a previously built macro from a categorized list.

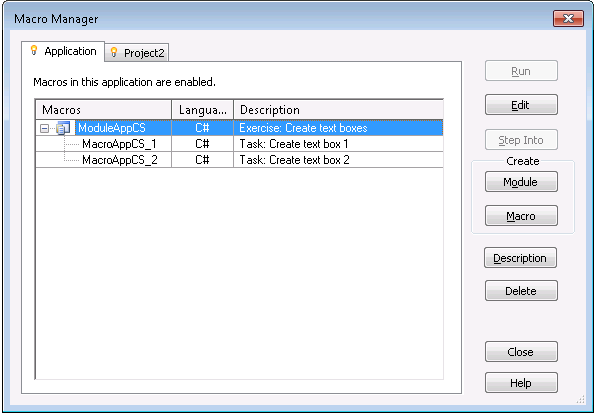

Shown below is the Macro Manager screen:
The tabs indicate the scope or level of a macro.
- Application tab. The Application tab lists macro modules available to all opened Revit projects in the current instance of the Revit application. It is always the first tab to the left and active (indicated by the icon). It is always available, whether projects are open.
NoteIf you send the RVT file to a person on another computer, application level macros would not be available.
- Active document tab. The active document tab represents the currently active project in Revit. The project does not necessarily contain embedded macros as in this case, although it can. The tab bears the name of the active project (Project1 in this case) and is indicated by the icon. This tab is not visible when a project is not open.
- Inactive document tabs. Inactive document tabs represent open projects that contain embedded macros (see below). The tab bears the name of the project (Project2 and Project3 in this case).
You add, modify, build, and delete modules and macros from these tabs.
Macros and Modules

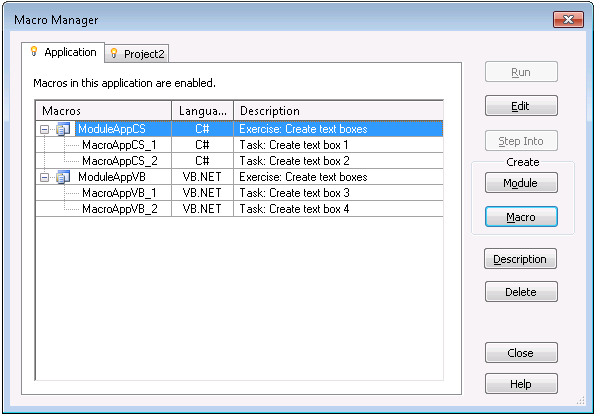

A module is an organizational grouping of macros. Macros can be either independent within a module when they run, or share code or utilities with each other. They are arranged in the Macro Manager as follows with the macros organized under their parent module.
Macros within a module are seen and built together. The icons representing the module also show their current state.
Application-level and Document-level Modules
Fundamentally, application-level macro tools are written to be useful in any document in nearly any Revit session. Additionally, they do not require a project to be open in Revit to run. This allows you the flexibility to:
- Customize the Revit UI
- Add tools to Revit
- Modify documents on opening
- Batch open documents
- Apply new standards or settings to new documents
Should these uses be implemented, it is good practice to create application-level macros that initiate transactions needed by the macro.
Document-level macros tools are written for specific projects and are saved in the Revit project.
Revit Macro Implementation Languages
You create macros in Revit using the implementation language, C# or VB.NET. Your selection determines the type of source code template generated and edited in Revit macro IDE.
Macro Project File Locations
When you work in the Revit macro IDE, you must save and build the macros successfully before they will display in the Macro Manager's categorized list. Before we look at an example of the initial code loaded into the Revit macro IDE, let's discuss where macro project files reside on your computer.
Both Application-level and Document-level macro projects are stored in a subfolder of the Revit installation directory:
Windows XP: C:\Documents and Settings\All Users\Application Data\Autodesk\Revit\Macros\<release>\<product>\VstaMacros
Windows 7: C:\ProgramData\Autodesk\Revit\Macros\<release>\<product>\VstaMacros
Document-level macro projects are stored within an RVT file. On disk, when the associated RVT project opens, any built and saved macro(s) are stored temporarily. The Document-level macro files are deleted from your local computer when their corresponding Revit project document (.rvt) closes.
Now that we have introduced the overall tools and processes, let’s look at the specific tasks.
