Define the Mesh (Automatically)

In this step, we configure Automatic Mesh Sizing for our model. (This is easy...)

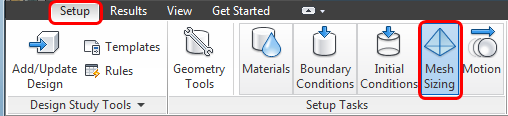

1. Switch to the Mesh task by clicking Mesh Sizing from the Setup tab:

2. Click Autosize on the Automatic Sizing context panel:

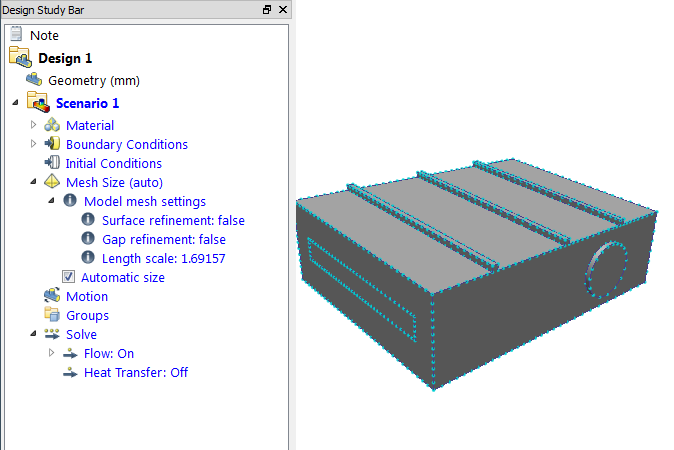

What it should look like...

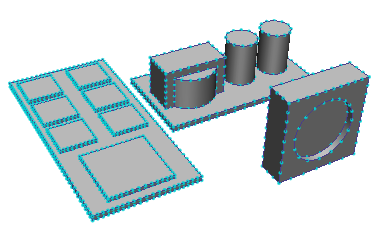

You should see a series of blue dots along every edge of the model. These show how the mesh will look.
