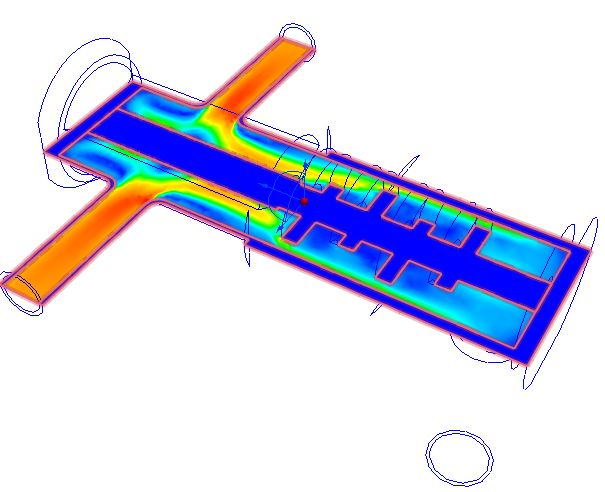

Planes are the primary way to visualize results on three dimensional models.
To interact with Planes, click Results (tab) > Results Tasks (panel) > Planes.
Planes provide a wide array of visualization functionality:
Accessing Plane Functionality
NoteEnsure Planes is selected on the Results Tasks panel.
- On-model Method 1: Left click on the Plane, and click the context toolbar icon.
- Settings (Controls)
- XY Plot
- On-model Method 2: Right click on the Plane, and select from the menu.
- Off-model: Click the icon in the Planes context panel.
Use Summary Planes in the Decision Center to compare results from multiple scenarios or to compare against Critical Values.
To Create a Summary Plane:
(There are several ways.)
- Right click on the plane, and click Summary.
- Click Make Summary on the Planes context panel.
- Check the Summary box on the Selection list dialog:
- Designate a boundary condition as a Summary Plane. Click here for more information.
Summary Plane Indications:
- The Plane is listed as a Summary Plane in the Decision Center.
- Results on the Plane from each scenario are listed in the Critical Values table of the Output Bar.
To Delete a Summary Plane:
- In the Decision Center, right click on the Summary Plane.
- Click Remove from the menu.
NoteThis deletes the Results Plane from the model.
For an example of creating a Summary Plane
For more about viewing Critical Values...
The generic term for this tool is cutting plane, and we use this general term in the Examples section. In the Results task dialog and the Help system, the terminology is a little more specific:
- Results Planes and Planes refer to planar cutting planes.
- Summary Planes are Results planes that are marked as "Summary" for comparing results in the Decision Center.
