Create Template Materials

No headers

This model contains two materials: water and copper. We will create settings for both in this step.

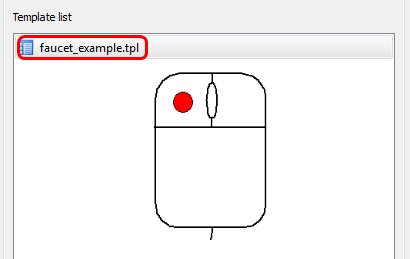

From the Template list, left click on faucet_example.tpl.

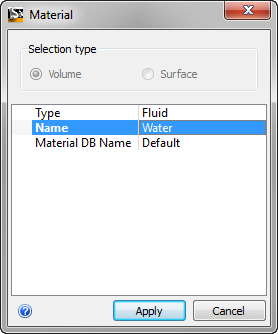

To create the water material:

Right click on Scenario 1. Select Add material...

On the Material quick edit dialog, Type = Fluid

Name = Water

Click Apply.

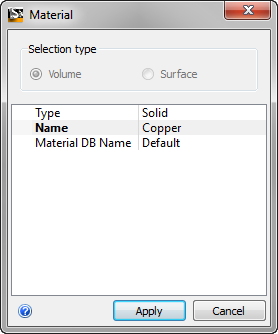

To create the copper material:

Right click on Scenario 1. Select Add material...

On the Material quick edit dialog, Type = Solid.

Name = Copper

Click Apply.

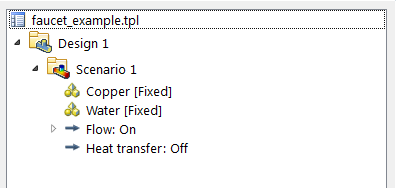

NoteThe Template should look like this:
