Click Boundary Conditions from the Setup tab:

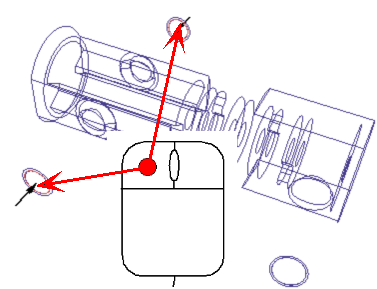

Select the two Inlet Faces by left clicking on each.

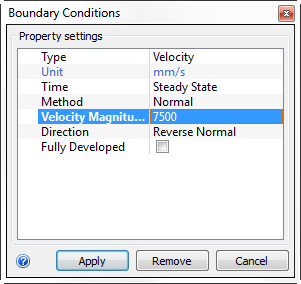

Open the Boundary Conditions quick edit dialog in ONE of the following ways:
- Click Edit from the context toolbar:
- Click Edit from the Boundary Conditions context panel:
VelocityMagnitude = 7500
NoteThe flow direction is into the model.
For more about Velocity Boundary Conditions
