Hide the filter housing.
Select the cylindrical filter.
Open the Materials quick edit dialog in ONE of the following ways:
- Click Edit from the toolbar:
- Click Edit from the Materials context panel:

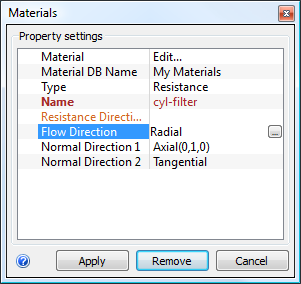

Material DB Name = My Materials
Name = cyl-filter
Flow Direction: Click the ... button
Click the Radial button on the Flow Direction dialog

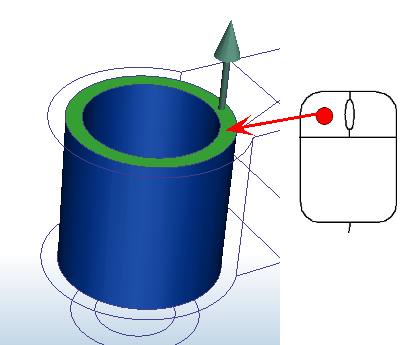

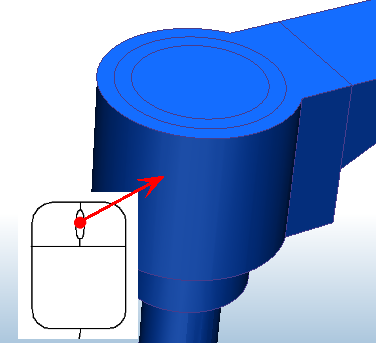

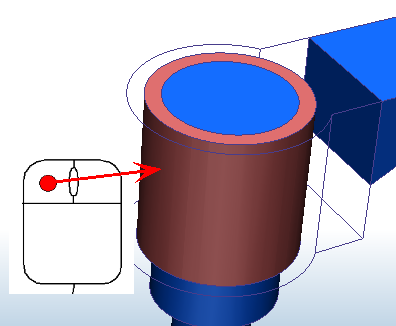

Click on a planar surface of the filter:
For more about cylindrical distributed resistance regions
