Assign the Internal Fan

    Table of contents
    No headers

    Questions about applying settings?

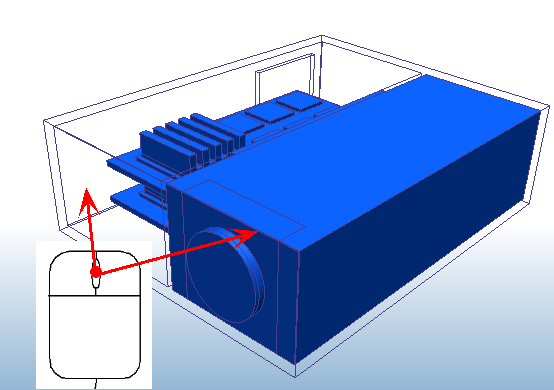

    Hide the case, air, and fan housing.

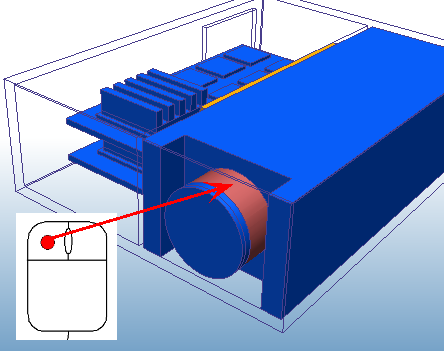

    Select the fan.

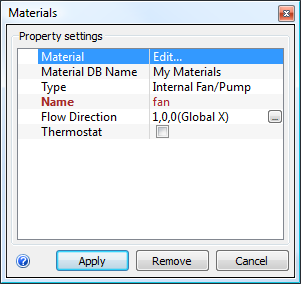

    Open the Materials quick edit dialog in ONE of the following ways:

    • Click Edit from the toolbar:

    • Click Edit from the Materials context panel:

    Material DB Name = My Materials

    Type = Internal Fan/Pump

    Name = Fan

    Click the X button on the Flow Direction dialog.

    NoteThe flow direction should be in the positive X direction (1, 0, 0).

    Click Apply.

    Back | Next
