Total Heat Generation on Capacitors

    Table of contents
    No headers

    Questions about applying settings?

    Hide the casing and the two air parts

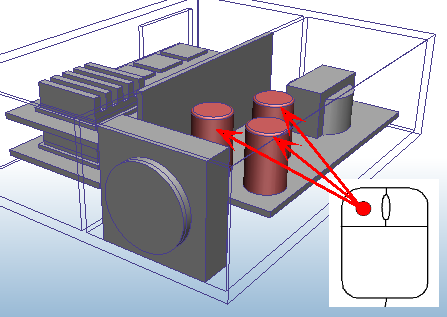

    Select the three capacitors

    Open the Boundary Conditions quick edit dialog in ONE of the following ways:

    • Click Edit from the context toolbar:

    • Click Edit from the Boundary Conditions context panel:

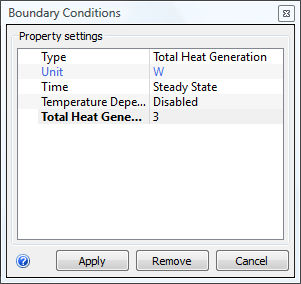

    Type = Total Heat Generation

    Units = W

    Total Heat Generation = 3

    Click Apply.

    Back | Next
