Assign Silicon Material

    Table of contents
    No headers

    Questions about applying settings?

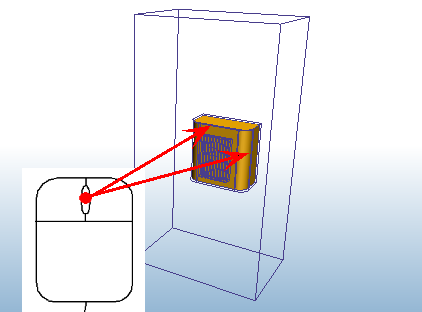

    Hide the case and the internal air part.

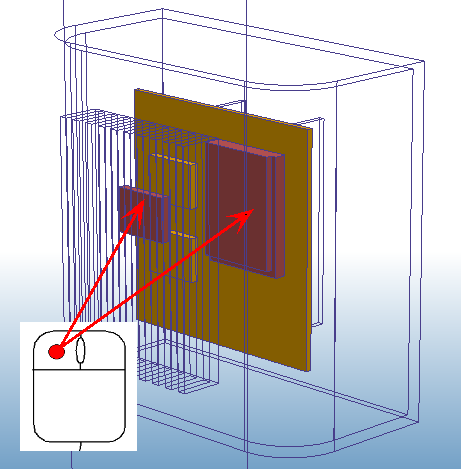

    Select the transceiver and top chip.

    Open the Materials quick edit dialog in ONE of the following ways:

    • Click Edit from the toolbar:

    • Click Edit from the Materials context panel:

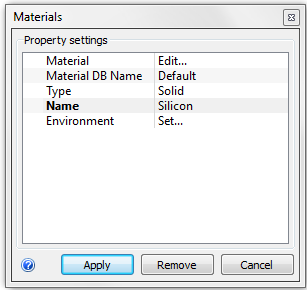

    On the Material quick edit dialog, Type = Solid.

    Name = Silicon

    Click Apply.

    Back | Next
