Assign Aluminum Material

No headers

Click Materials from the Setup tab:

Questions about applying settings?

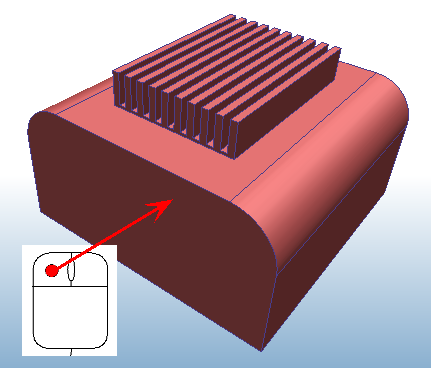

Select the outer casing

Open the Materials quick edit dialog in ONE of the following ways:

Click Edit from the toolbar:

Click Edit from the Materials context panel:

On the Material quick edit dialog, Type = Solid.

Name = Aluminum

Click Apply.

Back | Next
