Assign Buoyant Air Material

Table of contents

No headers

Questions about applying settings?

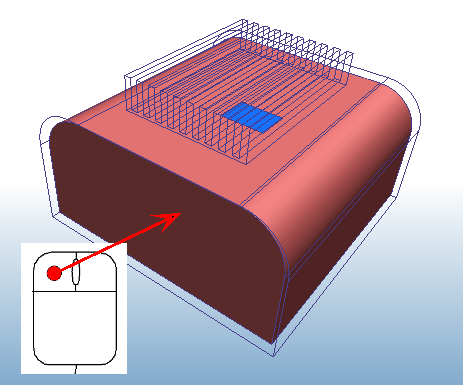

Hide the outer casing.

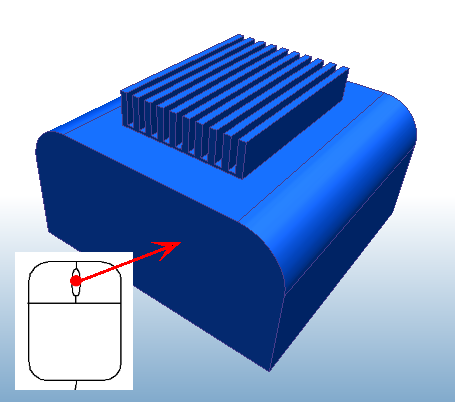

Select the internal air.

Open the Materials quick edit dialog in ONE of the following ways:

Click Edit from the toolbar:

Click Edit from the Materials context panel:

On the Material quick edit dialog, Type = Fluid

Name = Air

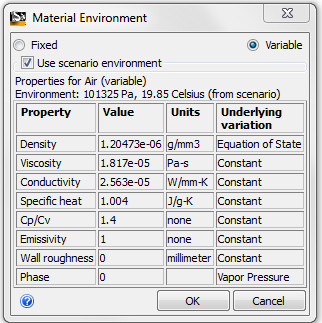

To allow the properties to vary with temperature, click Set... on the Environment line. On the Material Environment dialog, select Variable, and click OK.

Click Apply.
