Assign Inlet Velocity Boundary Condition

No headers

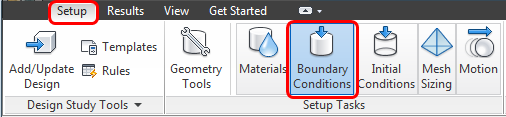

Click Boundary Conditions from the Setup tab:

Questions about applying settings?

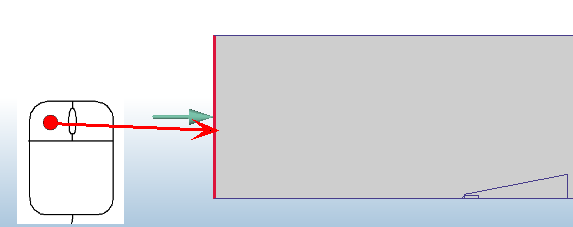

Open the Boundary Conditions quick edit dialog in ONE of the following ways:

Click Edit from the context toolbar:

Click Edit from the Boundary Conditions context panel:

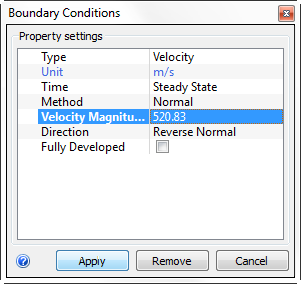

Type = Velocity

Units = m/s

Velocity Magnitude = 520.83

Click Apply.

Back | Next
