Assign Aluminum to Poppet

No headers

Questions about applying settings?

Hide the flow volume.

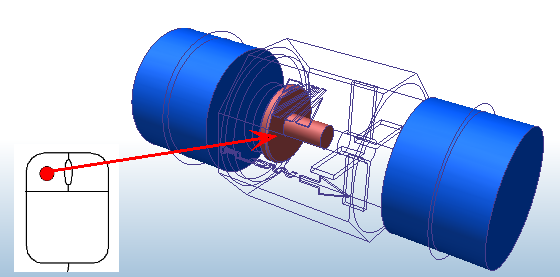

Select the poppet.

Open the Materials quick edit dialog in ONE of the following ways:

Click Edit from the toolbar:

Click Edit from the Materials context panel:

On the Material quick edit dialog, Type = Solid.

Name = Aluminum

Click Apply.

Back | Next
