Assign Volumetric Flow Rate Boundary Condition to Inlet

    Table of contents
    No headers

    Click Boundary Conditions from the Setup tab:

    Questions about applying settings?

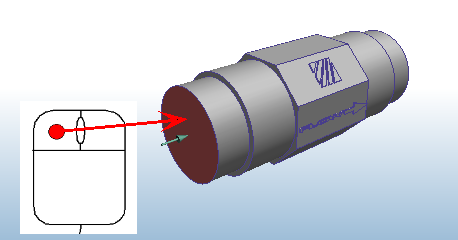

    Select the inlet.

    Open the Boundary Conditions quick edit dialog in ONE of the following ways:

    • Click Edit from the context toolbar:

    • Click Edit from the Boundary Conditions context panel:

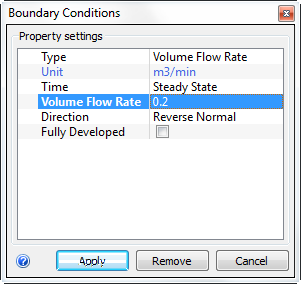

    Type = Volume Flow Rate

    Unit = m3/min

    Volume Flow Rate = 0.2

    Click Apply.

    Back | Next
