Animate Results

    Table of contents
    No headers

    Animating results provides a time-history of the results. In this case, it is a very useful way to understand how the motion develops as a result of the flow. Animating helps us to understand how long it takes the poppet to start moving, its ending position, and any oscillatory movement.

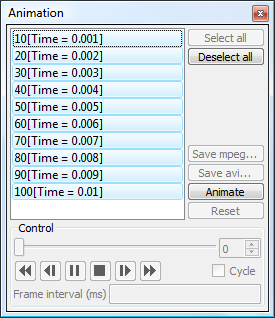

    To open the Animation dialog, right click off the model, and select Animation.

    Click the Select all button

    Click the Animate button.

    Click the Play button to animate the results.

    To stop the animation, click the Stop button.

    To clear the Active Results list, click the Reset button.

    Congratulations! You have completed the exercise. Click here to return to the Examples Title Page.
