Assign Brick Material to Houses

No headers

The brick material has a non-zero emissivity, so it is suitable for a radiation analysis without further modification.

Questions about applying settings?

Hide the Air part.

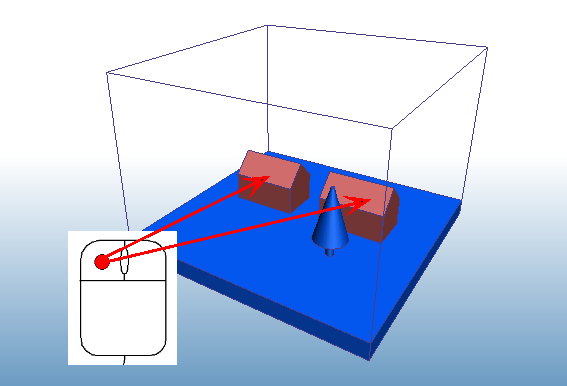

Select the two houses

Open the Materials quick edit dialog in ONE of the following ways:

Click Edit from the toolbar:

Click Edit from the Materials context panel:

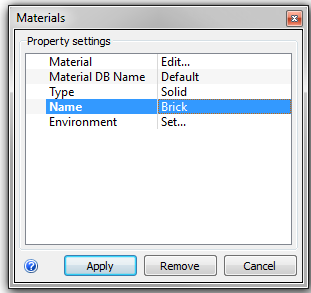

On the Material quick edit dialog, Type = Solid.

Name = Brick

Click Apply.
