Assign Temperature Boundary Condition to Environment

Table of contents

No headers

Click Boundary Conditions from the Setup tab:

Questions about applying settings?

Select the four sides and the top of the air environment.

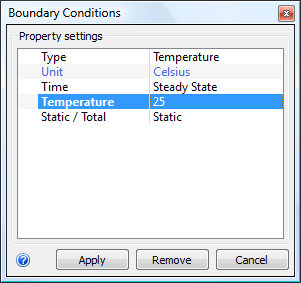

Open the Boundary Conditions quick edit dialog in ONE of the following ways:

Click Edit from the context toolbar:

Click Edit from the Boundary Conditions context panel:

Type = Temperature

Units = Celsius

Temperature = 25

Click Apply.

NoteIf this was a transient study (diurnal heating), the sky temperature would likely be defined as a transient boundary condition--hotter during the day and colder at night.
