To start comparing results, click Decision Center in the Quick Access toolbar:

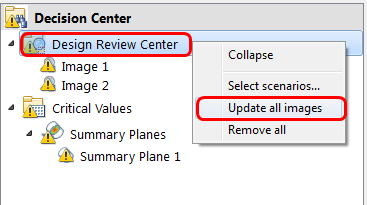

In the Decision Center, right click on the Design Review Center branch, and click Update all images.

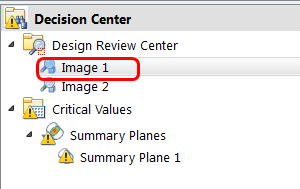

The Design Review Center tab of the Output bar should be active. Click Image 1 to show the mesh summary image:
NoteA thumbnail view from each scenario appears in the Design Review Center. The final mesh is shown in the Graphics window.

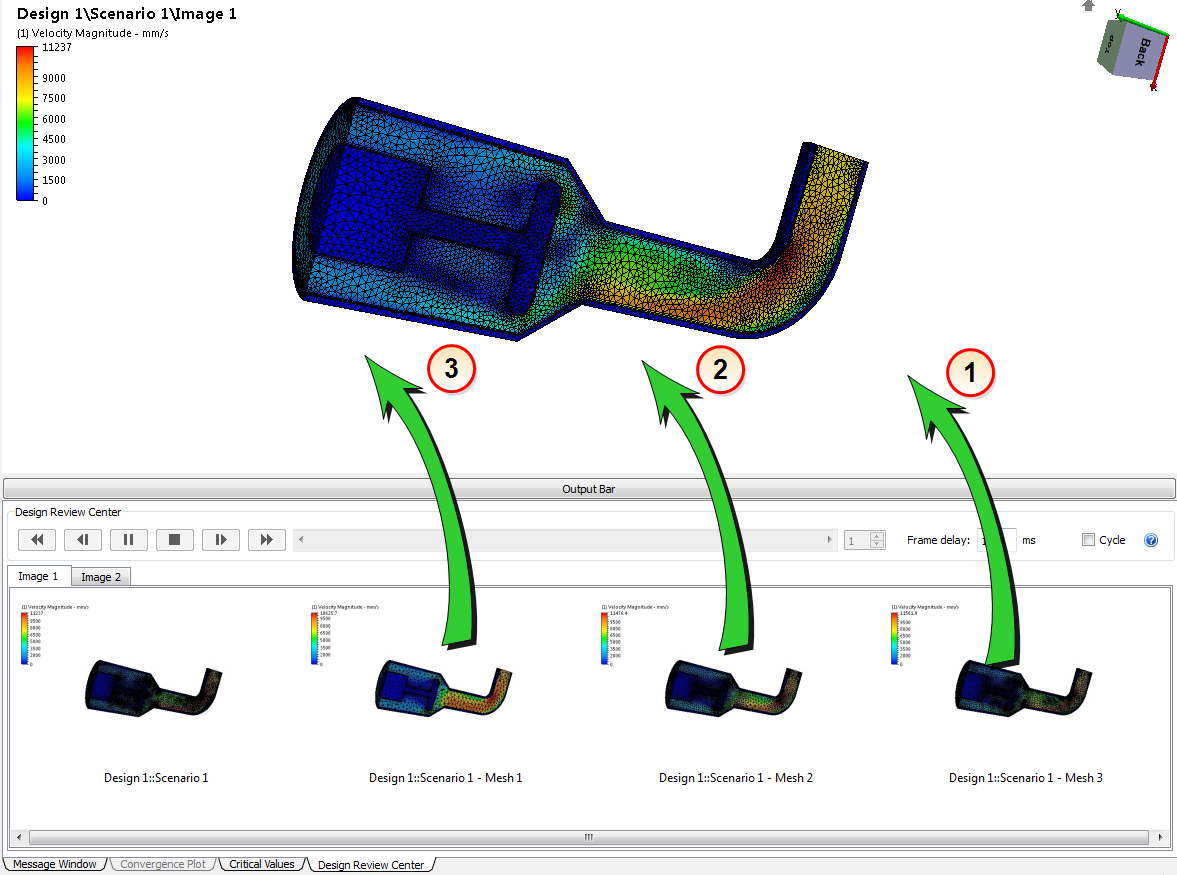

To load the other three images into the display, drag each into the Graphics window:
NoteDrag the images using the order suggested. This makes it easy to scroll from the initial (most coarse) to the final (most fine) meshes.
Use the slider and "VCR" controls in the Design Review Center region to compare the four meshes.
NoteAs you move the slider from right to left, the mesh appears finer. Navigate the model to see the full effect of the mesh adaptation on the model.
In the next step, we compare the results plane we captured at the symmetry plane.
