The navigation bar is a user interface element from which you can access both unified and product-specific navigation tools. Unified navigation tools (such as Autodesk® ViewCube® and SteeringWheels) are those that can be found across many Autodesk products. Product-specific navigation tools are unique to a product. The navigation bar floats over and along one of the sides of the current model’s window.
The unified and product-specific navigation tools are organized into separate areas of the navigation bar. The unified navigation tools are located on the two ends of the navigation bar, while the product-specific navigation tools are located in the center. You start navigation tools by clicking one of the buttons on the navigation bar or selecting one of the tools from a list that is displayed when you click the smaller portion of a split button.
Navigation Tools
The following unified navigation tools are available from the navigation bar:
- ViewCube. Indicates the current orientation of a model and is used to reorient the current view of a model.
- SteeringWheels. Collection of wheels that offer rapid switching between specialized navigation tools.
The following product-specific navigation tools are available from the navigation bar:
- Pan. Moves the view parallel to the screen.
- Zoom tools. Set of navigation tools for increasing or decreasing the magnification of the current view of a model.
- Orbit tools. Set of navigation tools for rotating the current view of a model.
- Center. Sets the center pivot point and adjusts the model view.
- Look At. Set of navigation tools for viewing the model normal to the geometry you select.
The following product-specific navigation tools can easily be added to the navigation bar using the Customize menu.
- Previous View. Returns the graphics display to the previous view orientation and zoom scale.
- Next View. Reverts to the next view after Previous View is used.
Reposition and Reorient the Navigation Bar
You can adjust the position and orientation of the navigation bar. Link it to the ViewCube, dock it when the ViewCube is not displayed, or freely position it along an edge of the current window. When linked to the ViewCube, the navigation bar is positioned above or below the ViewCube in a vertical orientation. When not linked or docked, the navigation bar can be freely aligned along one of the edges of the window of the current model.
You specify how the navigation bar can be repositioned from the Customize menu. When not linked to the ViewCube or docked, a grip handle is displayed. Drag the grip handle on the navigation bar to reposition it along one of the sides of the window of the current model.
If the side of the window that the navigation bar is aligned to is not long enough to show the entire navigation bar, it is truncated to fit. When truncated, a More Controls button displays and replaces the Customize button. When you click the More Controls button, a menu displays with the navigation tools that are not currently displayed.
Procedures
Pan views

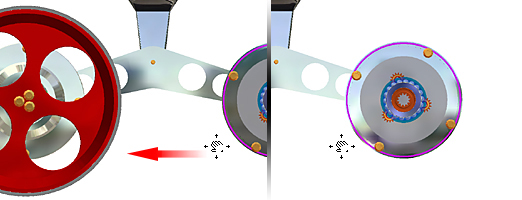

Use Pan to move the view in the graphics window in any direction planar to the screen. You can pan the view while other commands are active.
| | - On the
. - Use the arrow cursor to drag the view in the graphics window.
|

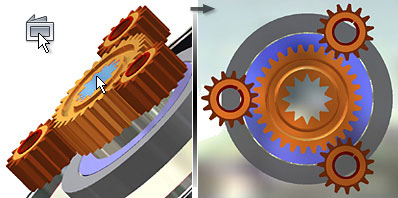

Look At a face, surface, or point
Use Look At to zoom and rotate the model in the graphics window. You can choose from three different Look At functions:
- Look At : Positions the selected planar element parallel to the screen or positions the selected edge or line horizontal to the screen.
- Look At Point : Centers, rotates, and zooms the display to position the elements around the selected point normal to the screen.

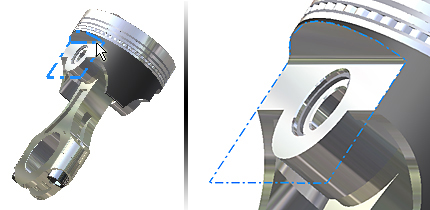

- Look At Surface: Creates a best-fit plane through the selected surface and positions the plane parallel to the screen. Also, zooms the display to enclose the surface.
Rotate views with Free Orbit and Constrained Orbit commands
Use Free Orbit on the Navigation bar to rotate models in screen space:
- On the

- Moving the mouse left-right rotates the view about the vertical screen axis.
- Moving the mouse away or toward you rotates the view about the horizontal screen axis.
- Rotation is about the last defined pivot point. Right-click to define a new pivot point.
Use Constrained Orbit to rotate the model about the vertical axis:
- On the

- Moving the mouse left or right rotates the view about vertical axis, where vertical is based on the normal to the Top face of the ViewCube.
- Rotation is about the last defined pivot point. Right-click to define a new pivot point, or click the Center tool in the Navigation bar.
You can rotate the view using these commands while other commands are active.
Zoom views in or out
Zoom to view all

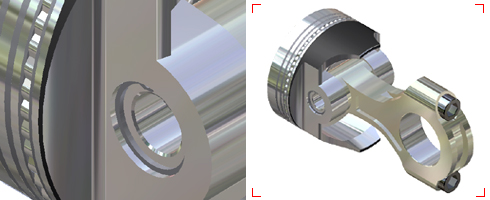

Use Zoom All to zoom a part or assembly so that all elements display in the graphics window. You can zoom a drawing so that the active sheet fit within the graphics window.
| | On the Navigation bar Zoom All to execute the zoom. |
Use the Navigation Bar
To display the navigation bar
If the navigation bar is not visible, click
Options
Graphics
Navigation Tools
Show Navigation Bar.
To close the navigation bar
To close the navigation bar, do one of the following:
- Click Close.
- Click

Options
Graphics
Navigation Tools
Show Navigation Bar.
NoteThe Customize drop-down arrow is located on the bottom right of the navigation bar as shown in the following image.
To reposition the navigation bar and ViewCube
- On the navigation bar, click Customize.
- Click Customize menu
Docking Positions
Link to ViewCube. When Link to ViewCube is checked, both the navigation bar and ViewCube are repositioned together around the current window. When ViewCube is not displayed, the navigation bar is docked in the same location in which ViewCube would be instead.
- Click Customize.
- Click Customize menu
Docking Positions
an available docking position. The navigation bar and ViewCube are repositioned.
To link the position of the navigation bar to ViewCube
- On the navigation bar, click Customize.
- Click Customize menu
Docking Positions
Link to ViewCube. When Link to ViewCube is checked, both the navigation bar and ViewCube are repositioned together around the current window.
To freely reposition the navigation bar along the edge of the current window
- On the navigation bar, click Customize.
- Click Customize menu
Docking Positions
Link to ViewCube. The grip handle for the navigation bar is displayed along the top of the navigation bar.
- Click the grip handle and drag the navigation bar along the edge of the window where you want it displayed. Release the button on the pointing device to orient the navigation bar along the edge of the window.
Dragging the navigation bar to the top or bottom of the window orients it horizontally, dragging it to the left or right side of the window orients it vertically.
- Drag the navigation bar along the window’s edge to adjust its position along the edge.
To adjust the opacity of the navigation bar
- On the navigation bar, click Customize.
- Click Customize menu
Inactive opacity or Active opacity and make a selection.
Zoom views of selected features

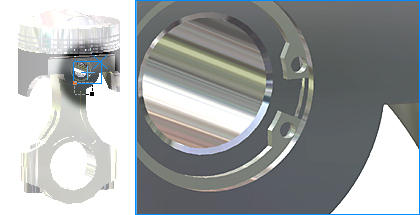

Use Zoom Selected to zoom a selected edge, feature, or other element to the size of the graphics window.
| | - Select the edge, feature, or other element on which to focus.
- On
.
|
Zoom views of areas

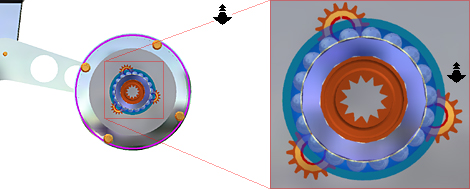

Use Zoom Window to define an area of a part, assembly, or drawing to fill the graphics window.
| | - On
. - Use the cross hairs to locate the area.
- Click and drag to frame the area of interest.
|
References
Viewing commands
The viewing commands manipulate the view in the graphics window.
| | Changes the cursor to a hand used to drag the view in the graphics window. |
| | Changes the cursor into cross hairs that are used to define a frame for the view. The elements within the frame zoom to fill the graphics window. |
| | Turns the cursor to an arrow that is used to zoom the view in or out. |
| | Zooms the view so that all elements in the model fit in the graphics window. |
| | Zooms the selected part, surface, line, or other element to fill the graphics window. You select the element before clicking Zoom. |
| | Changes the cursor to a rotate symbol used to rotate the model about a pivot point. |
| | Rotates the model about the axis that is normal to the Top and Bottom faces of the ViewCube. |
| | Sets the center pivot point and adjusts the model view. |
| | Zooms and rotates the model to display the selected face planar to the screen. |
| | Zooms and rotates the model to display the selected point normal to the screen. |
| | Zooms and rotates the model to display the selected surface normal to the screen. |
| | Changes the current view to the previous view orientation and zoom value. |
| | Reverts to the next view after Previous View is used. |
