In this section, we cover aspects of setting up and performing an analysis that are specific to Multiphysics. This top-level page discusses some things to consider when combining analysis types in one-way coupled (or uncoupled) multiphysics scenarios. The remaining pages in this section specifically deal with Coupled Fluid Flow and Thermal analyses only. Since one-way coupled (or uncoupled) multiphysics scenarios involve running individual analysis types separately, refer to the appropriate Analysis-Specific Information subtopics for additional information on each phase of one-way coupled analyses.
Where applicable, a tab is included within the analysis parameters dialog box for specifying external files as a source of input conditions. For example, thermal results (temperatures) and electrostatic results (voltages) can be specified within the Thermal/Electrical tab of the Analysis Parameters dialog box for linear and nonlinear structural analyses. Also where applicable, the desired time step or load case from the results file can be specified.
This command is accessed by right-clicking in the display area of the FEA Editor. It appears in the context menu only when nothing is currently selected at the time you right-click. The Loads from File dialog box allows you to specify the type of results file, the load case from the results file to use as an input, the load case within the current analysis in which to apply this load, and a multiplier.
For temperatures, either of the above two methods may be used, but the behavior is somewhat different for each. Electrostatic voltage inputs may only be specified within the Analysis Parameters dialog box. For all other types of results, the Load from File command, must be used to apply the load to the subsequent analysis. Two examples of results that can only be applied via the Loads from File command are electrostatic forces and fluid boundary reaction forces.
In one particular case, the solver does not output, by default, a result that is applicable to a subsequent analysis. Specifically, you must enable the optional outputting of electrostatic reaction forces and specify the surfaces for which the reactions will be calculated and output. This is done within the Options tab of the Analysis Parameters dialog box for the Electrostatic Field Strength and Voltage analysis type.
Some types of one-way coupling permit the meshes to be different in the two models. This allows the mesh to be optimized in both models. (Of course, the meshes can be identical also.) See Figure 1 for an example. Refer to the respective page for each loading type to see whether different meshes are supported or not.
When the type of load supports different meshes in the two models, the model with the results must be a complete model. The results will be transferred between different meshes by mapping the nodes in each part of the result's model to the same part number in the target model. The mapping is as follows:

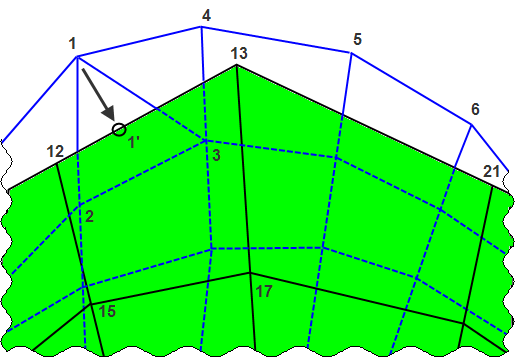

A highly magnified drawing (and exaggerated for clarity) of two meshes of the same part in two different models. The results are being transferred from the model shown in green and shaded to the mesh of the target model (shown in blue, un-shaded, and behind the mesh of the results model). Node 1 is outside the volume of the results mesh, so it is projected onto the surface of the results (point 1'). Shape functions are used to interpolate the result from element 12-13-17-15 to the nodes 1', 2, and 3. The result at 1' is assigned to node 1.

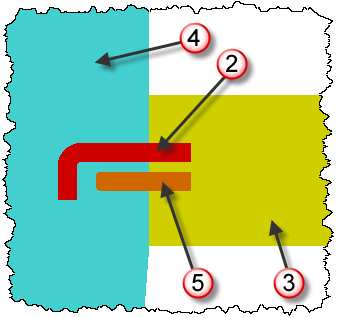

Since the mapping is performed on a part-by-part basis, different parts can be activated or deactivated in each model. For example, imagine using the voltages from an electrostatic analysis in a stress analysis to calculate the piezoelectric effect. The electrostatic model may include the air in the analysis in order to have the proper electrostatic field. But the air is not relevant to the stress analysis, so it can be deactivated. Likewise, if there were a part needed for the stress analysis which has no influence on the electrostatic analysis, it can be deactivated in the electrostatic analysis. See Figure 2.
When the type of load requires the mesh in the two models to be identical, or if the complete model does not exist for the results, the results will be transferred by one of two methods (depending on the capability of the load type):
