Open the Model

1. Click Open on the Quick Access Toolbar (QAT).
   • In the Open dialog box that appears, navigate to your tutorial models folder.
   • Select the STEP Files (*.stp, *.ste, *.step) option in the CAD Files section of the Files of type pull-down menu.
   • Select the file Support Beam.stp.
   • Click the Open button.
2. The Choose Analysis Type dialog box appears.
   • Set the analysis type to Linear Static Stress with Linear Material Models.

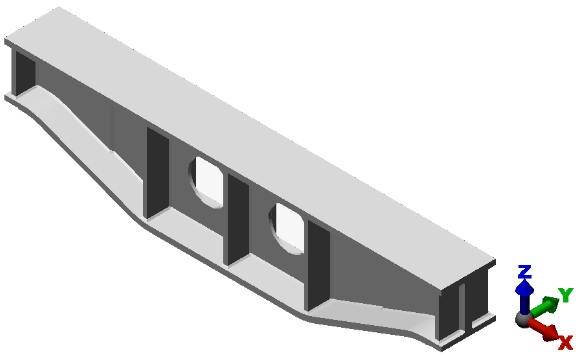

   • Click the OK button. The model opens in the FEA Editor environment, as shown below.
