Radial Comb Motor Electrostatic Analysis

    Table of contents
    1. 1. Topics in this section

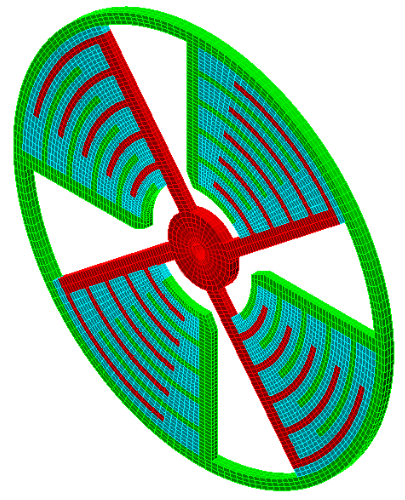

    In this tutorial, we will determine the voltage profile and the Coulomb forces due to applied voltages in a microelectronic radial comb motor.

    Features Illustrated:

    • Brick elements
    • Applied voltages
    • Calculating Coulomb forces
    • Deactivating a part
    • Electrostatic field strength and voltage analysis
    • Electrostatic results
