- Click Open on the Quick Access Toolbar (QAT). The Open dialog box displays.
- Navigate to your tutorial models folder.
- Select the Autodesk Simulation Archive (*.ach) option in the Autodesk Simulation Files section of the Files of type drop-down list.
- Select the Radial Comb.ach file and click Open.
- Select the directory where you want the file to be extracted.

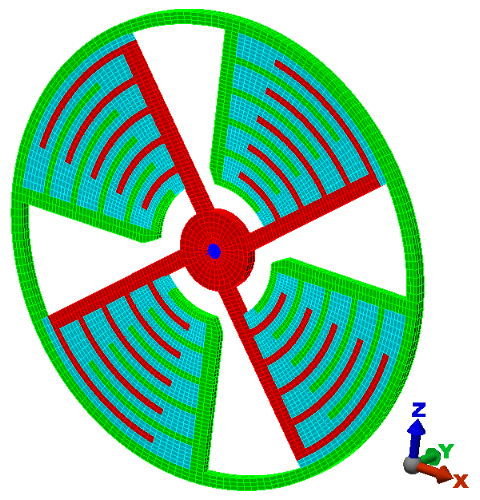

- Click OK. The model opens in the FEA Editor environment, as shown below.
The analysis type has already been set to Electrostatic Field Strength and Voltage.
