In the default view for the conceptual design environment, levels display in 3D as lines around the back side of a box.

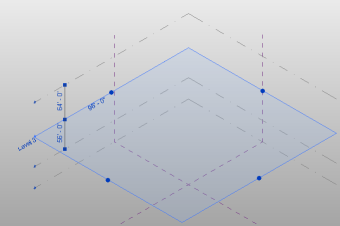

When a level is selected, the following information displays in the drawing area:
- the level elevation
- the level name
- the distances between the selected level and its surrounding levels
- the drag handles used to change the level area
Topics in this section
- Creating 3D Levels
- Changing the Height Between 3D Levels
- Changing 3D Level Elevations
- Changing 3D Level Names
- Explicitly Changing the 3D Level Area
- Switching between a 3D Level and its Corresponding View
- 3D Level Graphics
- Sun and Shadow Settings for 3D Levels
- 3D Level Type Properties
- 3D Level Instance Properties
