Manipulating Forms in X-Ray Mode

    Table of contents
    No headers
    1. Select a form.

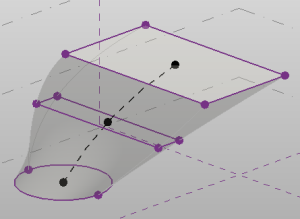

    2. Click Modify | Form Element tabForm Element panel X-Ray. The form displays in X-Ray mode.
    3. Select elements of the form and the 3D control displays.

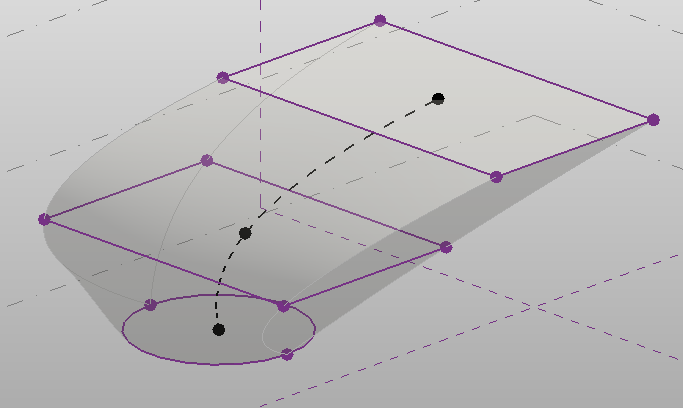

    4. Drag the 3D control arrow.
      NoteYou can also select and delete profiles, edges, and vertices in X-Ray mode.
