iv_setCamera ( document As Part, _
               viewNo As Integer, _
               cameraFit? As Boolean, _
               cameraViewOrientation As Name, _
               cameraPerspective? As Boolean, _
               cameraPerspectiveAngle As Number, _
               cameraEye As Point, _
               cameraTarget As Point, _
               cameraUpVector As Vector, _
               cameraWidth As Number, _
               cameraHeight As Number, _
               cameraUseTransition? As Boolean ) As List

Argument	Type	Description
document	part	Handle of the document owning the camera.
viewNo	integer	Specifies the view number to use
cameraFit?	boolean	If set, the scene will be fit into the view
cameraViewOrientation	name	One of the predefined orientations: :Front, :Top, :Right, :Back, :Bottom, :Left, :IsoTopRight, :IsoTopLeft,:IsoBottomRight, :IsoBottomLeft, or :Arbitrary
cameraPerspective?	boolean	Specifies Perspective or Parallel projection type
cameraPerspectiveAngle	number	Specifies the angle of the projection, for the perspective camera type
cameraEye	point	Position of the camera center. If Novalue, the current position is used
cameraTarget	point	Point the camera is looking at. If NoValue, this parameter is ignored
cameraUpVector	vector	Specifies the camera rotation along its axis. If NoValue, the current angle is used
cameraWidth	number	Width of the camera extent. Can be NoValue
cameraHeight	number	Height of the camera extent. Can be NoValue
cameraUseTransitions?	boolean	If set, the transitions (animation) will be used to set the camera.

Example 1

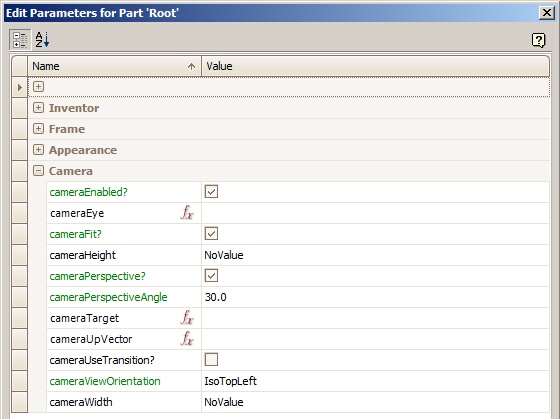

The Camera parameters on an Assembly document are the same as the arguments to iv_setCamera().

Example 2

The sample design CameraObject below demonstrates use of camera functions. The design when instantiated creates the snapshot using current camera settings. The settings are also saved. The setcamera rule in the design can called to restore the camera settings from stored values. For simplicity only three value Camera Eye,Target and UpVector are saved in dynamic rule.

Design CameraObject : Your_ApplicationRoot IvComponentGroup

    Rule cameraOrientation As Name  = :Front
    Rule perspective? As Boolean = False
    Rule perspectiveAngle As Number =0
    Rule cameraEye As Point = Point(0,0,0)
    Rule cameraTarget As Point = Point(0,0,0)
    Rule cameraUpVector As Vector = Vector(0,0,1)
    Rule cameraWidth As Number =0
    Rule cameraHeight As Number =0

    Uncached Rule setcamera As Boolean = setcameramethod()

Method setcameramethod() As Boolean
     iv_setCamera ( root, _
               1, _
               False, _
               cameraOrientation, _
               perspective? , _
               perspectiveAngle, _
               cameraEye , _
               cameraTarget, _
               cameraUpVector, _
               cameraWidth , _
               cameraheight , _
               True )

      Return True
End Method

Method PostCreateSelf() As List
    Dim _cameraEye As Point = second(second(root.getcamera()))
    Dim _cameraTarget As Point=second( nth(7,root.getcamera()))
    Dim _cameraUpVector As Vector  = second( nth(8,root.getcamera()))
    Dim _cameraWidth As Number =second(third(root.getcamera()))
    Dim _cameraHeight As Number =second(nth(4,root.getcamera()))
    Dim _perspective? As Boolean = second(nth(5,root.getcamera()))
    Dim _perspectiveAngle As Number =second(nth(6,root.getcamera()))
    Dim _cameraOrientation As Name  = second( nth(9,root.getcamera()))
    'Create snapshot when camera object is created
    iv_SaveImage(root,_
            False,_
            _cameraOrientation,_
            _perspective? ,_
            _perspectiveAngle, _
            _cameraEye,_
            _cameraTarget,_
            _cameraUpVector,_
            _cameraWidth,_
            _cameraHeight,_
            "c:\temp\image1.jpg",_
            1024,_
            768, _
            "default",_
            "default" _
            )
    Dim s1 As String ="Point_("  + stringValue(getx(_cameraEye)) + "," _
                                 + stringValue(gety(_cameraEye)) + "," _
                                 + stringValue(getz(_cameraEye)) _
                                 + ",worldFrame())"

    Dim s2 As String ="Point_("  + stringValue(getx(_cameraTarget)) + "," _
                                 + stringValue(gety(_cameraTarget)) + "," _
                                 + stringValue(getz(_cameraTarget)) _
                                 + ",worldFrame())"

    Dim s3 As String ="Vector_(" + stringValue(getx(_cameraUpVector)) + "," _
                                 + stringValue(gety(_cameraUpVector)) + "," _
                                 + stringValue(getz(_cameraUpVector)) _
                                 + ",worldFrame())"
    Return { _
    {:action, :CreateDynamicRule, _
     :part, self(), _
     :name, :cameraEye, _
     :formula, s1 _
    }, _
    {:action, :CreateDynamicRule, _
     :part, self(), _
     :name, :cameraTarget, _
     :formula, s2 _
     }, _
    {:action, :CreateDynamicRule, _
     :part, self(), _
     :name, :cameraUpVector, _
     :formula, s3 _
     } _
    }
 End Method

End Design
