No headersEach machine on which Revit Server is to be installed must meet the following requirements:
NoteRevit Server performance in a virtual environment such as VMWare needs careful tuning to avoid significant performance issues, and you should allow for additional overhead beyond the basic requirements listed here. It is recommended that you compare the performance of your virtual environment versus a physical environment. Test the network throughput and latency of your virtual environment versus your physical hardware and adjust accordingly for best performance.
Important If you plan to use remote storage for Revit Server data, you must first set up a domain user account with the name RevitServerService (and make sure the machine hosting Revit Server does not have a local account with that same name) and give that account full access to the folder under which Revit Server data will be remotely stored. The account must be a member of the Administrators group, and the password should be set to not expire, because if it changes you will have to update the application pool settings for all instances of Revit Server that use remote storage. During the install you will need to provide the path to the storage folder and enter this password.
- 2GHz processor or better with at least 2 cores of processing power
- 8GB of memory minimum
- Hard drive with a spindle speed of at least 7200 rpm and at least 3.0 Gb/s transfer speed
- Server-class (gigabit Ethernet or better) network
- Microsoft .NET 4 (If not present, this version will be automatically installed by the Revit Server installation program.)
- IIS version 7.0 for Windows Server 2008, or IIS 7.5 for Windows 2008 R2 (see instructions that follow)
- If using non-R2 version of Windows Server 2008, it must be UR1 or newer
To install IIS version 7.0 on Windows Server 2008, or IIS 7.5 on Windows Server 2008 R2
- From the Start Menu, click All Programs
Administrative ToolsServer Manager. - On the Server Manager, select Roles.
- Under Roles Summary, click Add Roles.
- Click Next to display the Select Server Roles dialog.
- Select Application Server from the Roles list, and then click Next twice to display the Select Role Services dialog for the Application Server role.
- Select the Web Server (IIS) check box. If you are prompted to install additional role services and features, click Add Required Features.
- Expand Windows Process Activation Service Support and select TCP Activation. If you are prompted to install addition role services and features, click Add Required Features. Click Next twice to display the Select Role Services dialog for the Web Server (IIS) role.
- Expand Web Server, and then expand Application Development.
- Select ASP, CGI and Server Side Includes. Expand Management Tools, and then expand IIS 6 Management Compatibility.
- Select IIS 6 Scripting Tools. If you are prompted to install additional role services and features, click Add Required Role Services. Click Next.
- Ensure in the summary of selections that the following items are present: TCP Port Sharing, TCP Activation, ASP, CGI, Server Side Includes, and Non-HTTP Activation. If the summary of selections is correct, click Install.
- When installation completes, click Close.
To verify that these prerequisites have been correctly configured
- From the Start Menu, click All ProgramsAdministrative ToolsServer Manager.
- On the Server Manager, select Roles.
- Under Roles Summary, select Application Server.
- Scroll down to Role Services, and verify that the following 6 role services are installed:
- Click the Back button on the Server Manager toolbar.
- Under Roles Summary, select Web Services (IIS).

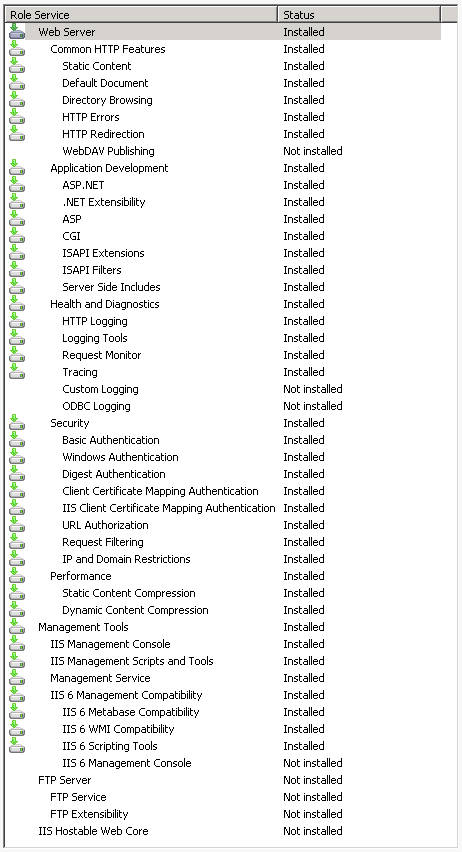

- Scroll down to Role Services, and verify that the following 40 role services are installed:
